Zhejiang YiYuan Aerator Equipment Co.,ltd.
| spare parts | unit | special | material |
| Motor | 1 | 3 HP,3 PH/1 PH | Advanced brand iron cast with aluminum motor cover |
| 220 V-440 V, 36 Slot motor | |||
| Reducer | 1 | 9 Bevel gear type | Gear:Single bevel gear |
| Mechanical seal | Stainless | ||
| 50 hz/60 hz | |||
| Motor cover | 1 | 610 mm x 310 mm x 21 mm | HDPE with UV prevention |
| Impellers | 8 | 670 mm x 210 mm | PP |
| Weight: 2.2 kg | |||
| Floats | 3 |
1750 mm x 320 mm x 220 mm |
HDPE |
| Weight: 7.2 kg | |||
| Movable joint | 4 | 110 mm x 110 mm | Stainless |
| Drive shaft | 2 | Length: 520 mm | Solid, 304# Stainless steel |

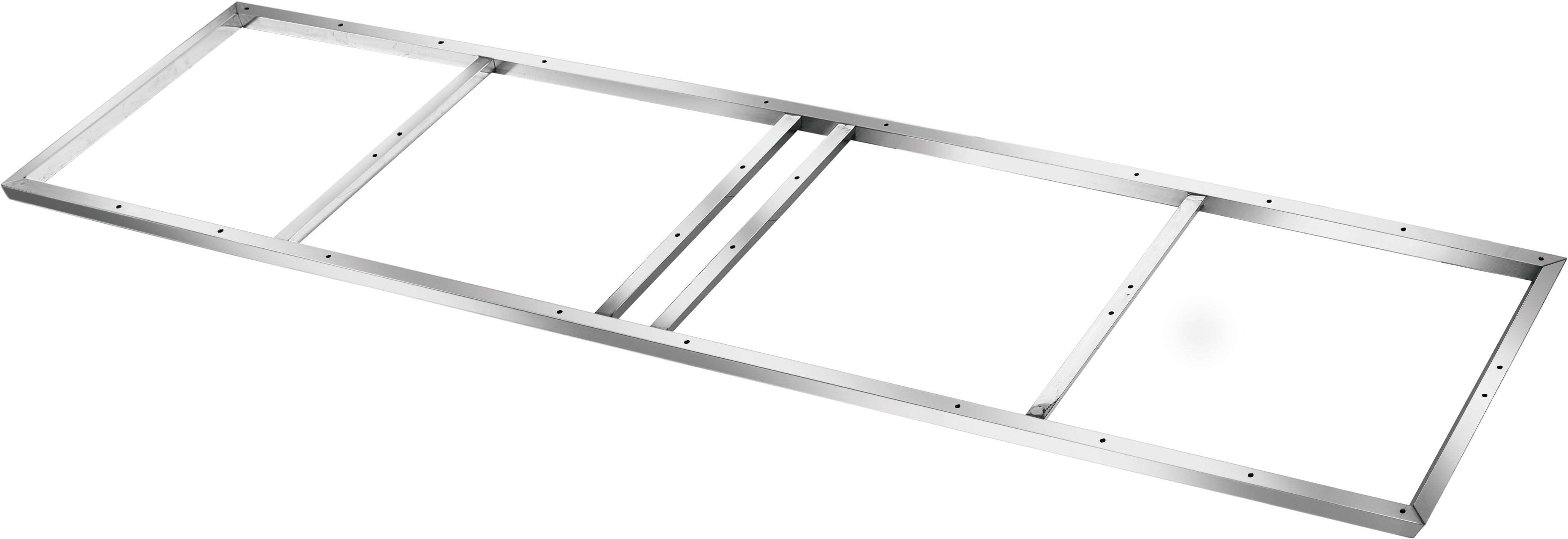

| Rectangular Frame | 1 | 1100 mm x 350 mm | 304# stainless steel |
| Block bearing | 2 | Height: 110 mm-130 mm | 304# stainless steel |
| screws | 2 | 304# stainless steel | |

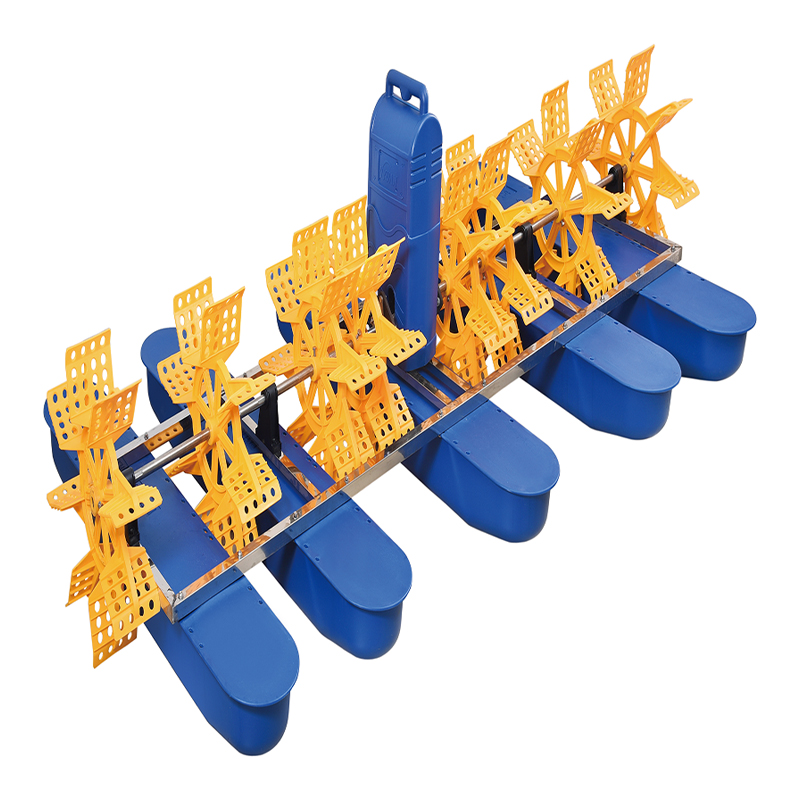

| ---------------------Kindly Note: For 8 impeller aerator, We only make L TYPE. --------------------- | |||
| Electric Consumption | <=3.8 Amp/h | ||
| Packaging Volume | ≈1.2 m³ | ||
| Net Weight | ≈125 kg(not sure) | ||
| CHARACTERISTICS |
|
1. High efficiency oxygen transferring ability: 4.2 kg/h . |
| 2. Water current circulation with longer water flow and larger water splash. |
| 3. Mechanical seal is used to avoid oil leakage. |
| 4. Inside protectors are used to avoid the motor being accidentally burnt out. |
| 5. The accurate-bevel gear made of chromium-manganese-titanium ensures long service life and high rigidity, saving 20% electric energy than traditional aerators. |
| SPARE PARTS DETAILS | |||
 |
Main parts | Motor | |
| Brand | YIYUAN | ||
| Original | China | ||
| Power | 0.75 kw ( 1hp) | ||
| Phase | 3 ph / 1 ph | ||
| RPM | 1440/50 hz , 1700/60 hz | ||
| Frame no. | 90# | ||
| Type | AEVF | ||
| Adopting automated coiler machine, our high-efficiency paddlewheel motor is made of 100% new copper wire and every motor will be tested in quality, longevity, lower amp. and power consumption. | |||
| Main parts | Reducer |  |
|
| Brand | YIYUAN | ||
| Item no. | Chinese 90# | ||
| Original | China | ||
| Ratio | 1:14, 1:16 | ||
| Oil liter | 0.8 L | ||
| Weight | 15 kg | ||
|
The efficiency of the bevel gear is superior than a conventional worm gear as the bevel gear can substantially reduce motor amperage by 25% as well as input power by 33%, and thus become the perfect choice to couple with our new generation of paddle wheel aerators. It will save much energy and your electricity bill |
|||
 |
Main parts | Impeller | |
| Material | PP | ||
| Size | 660 mm x 190 mm | ||
| Weight | 2.2 kg | ||
| Original | China | ||
| Option item | see spare parts: paddles | ||
| Quantity | 8 pcs | ||
| 1. Unique one-piece design with fortified structure made from non-recycled polypropylene material which makes the paddle sturdy, tough,impact-resistant, and less prone to fracture. 2. 8 pcs-vane paddle design is superior than 6 pcs-vane design paddle, allowing more frequent water splashe and better DO supply. |
|||
| Main parts | Float |  |
|
| Material | 100% new HDPE | ||
| Size | 1630 x 320 x 200 mm | ||
| Weight | 5.5 kg | ||
| Original | China | ||
| Quantity | 5 pcs | ||
| 1. Made from virgin HDPE material with excellent ductility 2. Integral blow molded formation, no water seeping problem 3. Excellent in withstanding larger impact, corrosion-free and weathering 4. 100% new material with dimensional design for higher stability of aerator in operation |
|||
 |
Adjusted Bearing |  |
Movable joint |
| No aging or cracking problem for the specially made nylon body. | Stainless steel movable joint is suitable for whatever sea water or fresh water. Never rust | ||
 |
Motor Cover |    |
304# Shaft |
|
1. Using virgin PE material. Excellent durability.
|
Made of 304# stainless steel, which could effectively prevent the corrosion from sea water | ||
|
CERTIFICATION
|
|---|
 |
|
SERVICE
|
|---|
 |
 |
|---|---|
| Pre-Sale Service | After-Sale Service |
| * Inquiry and Consulting Support | * Training on How to Install the Aerator. |
| * Sample Testing Support | * Training on How to Use the Aerator. |
| * Inspection on Our Factory in Person/ on Video | * Response within 24 Hours |
