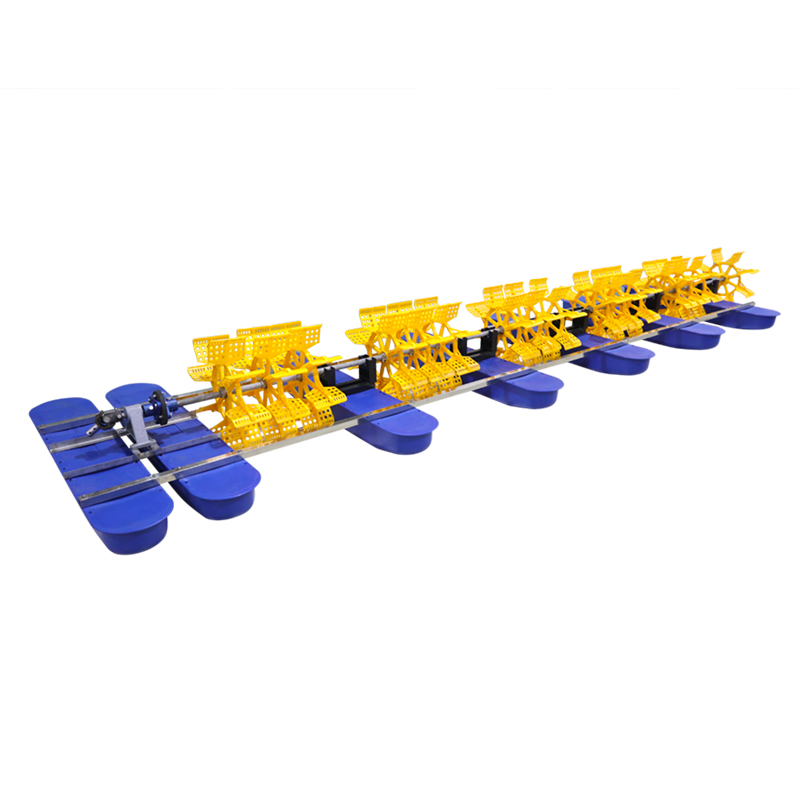

Zhejiang YiYuan Aerator Equipment Co.,ltd.
| spare parts | unit | special | material |

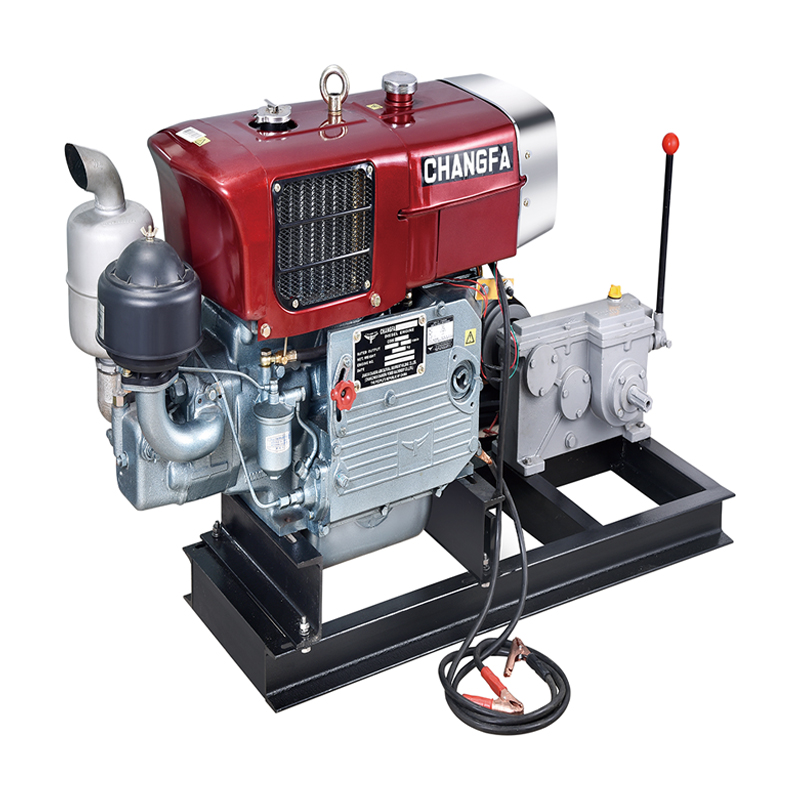

| Diesel engine | 1 | 16 HP | Advanced brand iron cast |
| Changfa diesel engine | |||

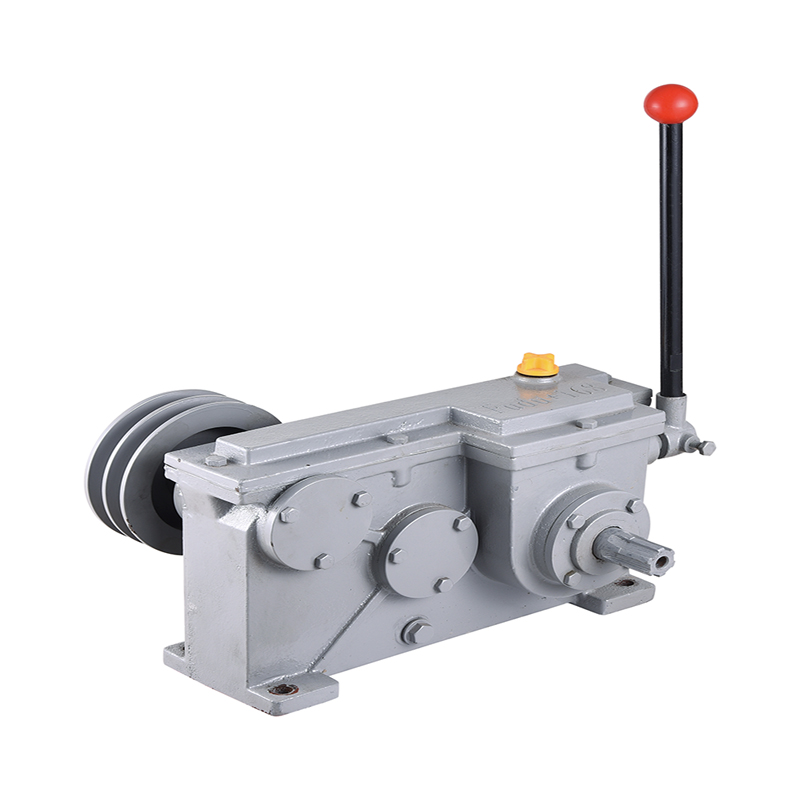

| Reducer | 1 | High quality adjustable | Iron cast |
| Impeller | 16 | 670 x 210 mm | HDPE |
| Floats | 6 |
1750 x 320 x 220 mm |
HDPE and UV- proof |
| Weight: 7.2 kg | |||
| Movable joint | / | Nylon | |
| Drive shaft | / | Solid, 304# Stainless steel | |
| Rectangular Frame | 1 | 1100 mm x 350 mm | 304# stainless steel |
| Block bearing | 2 | Height: 110 mm-130 mm | 304# stainless steel |
| screws | 2 | / | 304# stainless steel |
| Packaging Volume | 1.6 cbm | ||
| Net Weight | 400 kg | ||
| 20' Container | 16 units | ||
| 40 HQ Container | 40 units |
| CHARACTERISTICS |
|
1. High efficiency oxygen transferring ability: |
| 2. Water current circulation with longer water flow and larger water splash. |
| SPARE PARTS DETAILS | |||
  |
Main parts | Motor | |
| Brand | YIYUAN | ||
| Original | China | ||
| Power | 0.75 kw ( 1hp) | ||
| Phase | 3 ph / 1 ph | ||
| RPM | 1440/50 hz , 1700/60 hz | ||
| Frame no. | 90# | ||
| Type | AEVF | ||
| Adopting automated coiler machine, our high-efficiency paddlewheel motor is made of 100% new copper wire and every motor will be tested in quality, longevity, lower amp. and power consumption. | |||

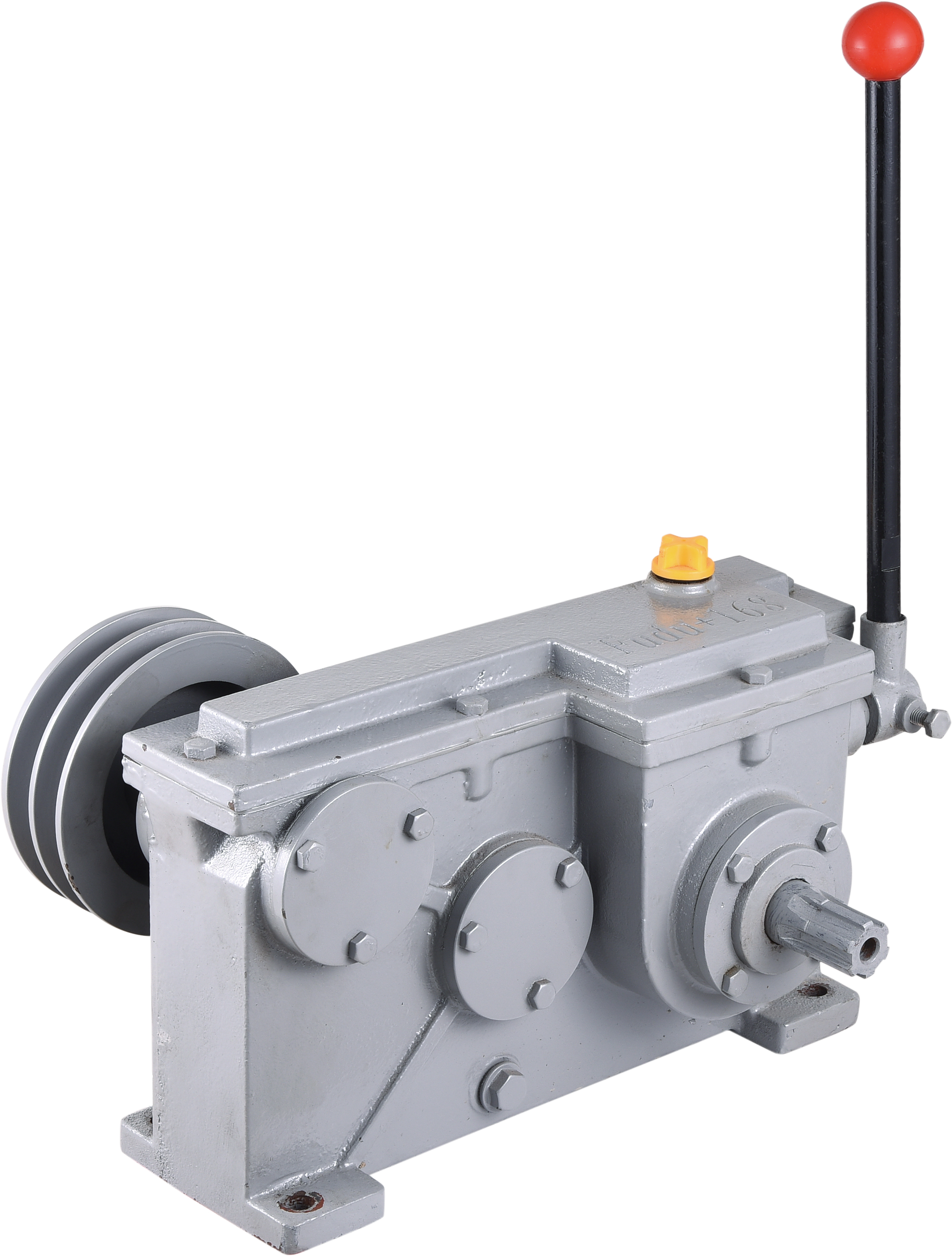

| Main parts | Reducer |  |
|
| Brand | YIYUAN | ||
| Item no. | Chinese 90# | ||
| Original | China | ||
| Ratio | 1:14, 1:16 | ||
| Oil liter | 0.8 L | ||
| Weight | 15 kg | ||
|
The efficiency of the bevel gear is superior than a conventional worm gear as the bevel gear can substantially reduce motor amperage by 25% as well as input power by 33%, and thus become the perfect choice to couple with our new generation of paddle wheel aerators. It will save much energy and your electricity bill |
|||
 |

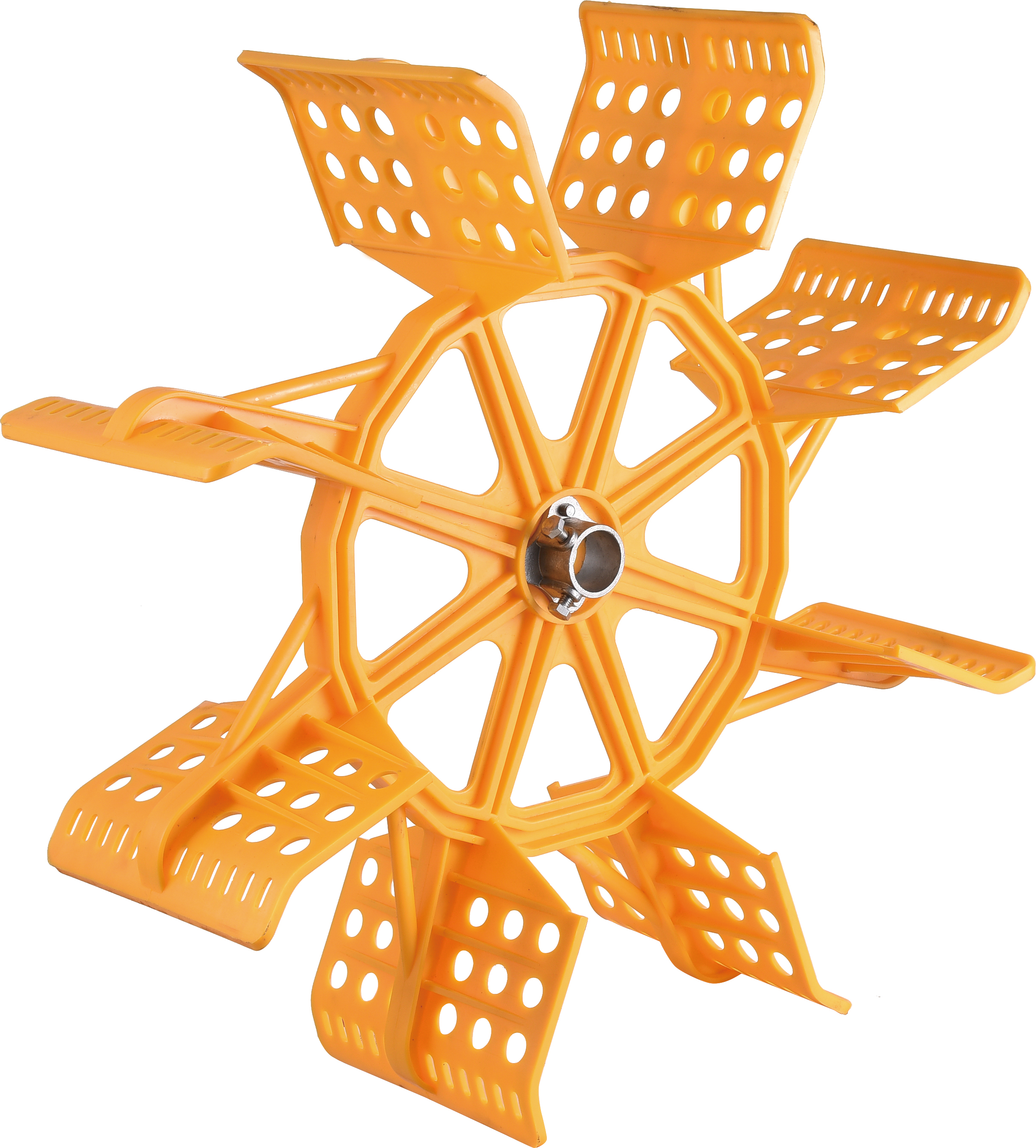

Main parts | Impeller | |
| Material | PP | ||
| Size | 660 mm x 190 mm | ||
| Weight | 2.2 kg | ||
| Original | China | ||
| Option item | see spare parts: paddles | ||
| Quantity | 2 pcs | ||
| 1. Unique one-piece design with fortified structure made from non-recycled polypropylene material which makes the paddle sturdy, tough,impact-resistant, and less prone to fracture. 2. 8 pcs-vane paddle design is superior than 6 pcs-vane design paddle, allowing more frequent water splashe and better DO supply. |
|||
| Main parts | Float |   |
|
| Material | 100% new HDPE | ||
| Size | 1630 x 320 x 200 mm | ||
| Weight | 5.5 kg | ||
| Original | China | ||
| Quantity | 2 pcs | ||
| 1. Made from virgin HDPE material with excellent ductility 2. Integral blow molded formation, no water seeping problem 3. Excellent in withstanding larger impact, corrosion-free and weathering 4. 100% new material with dimensional design for higher stability of aerator in operation |
|||
 |

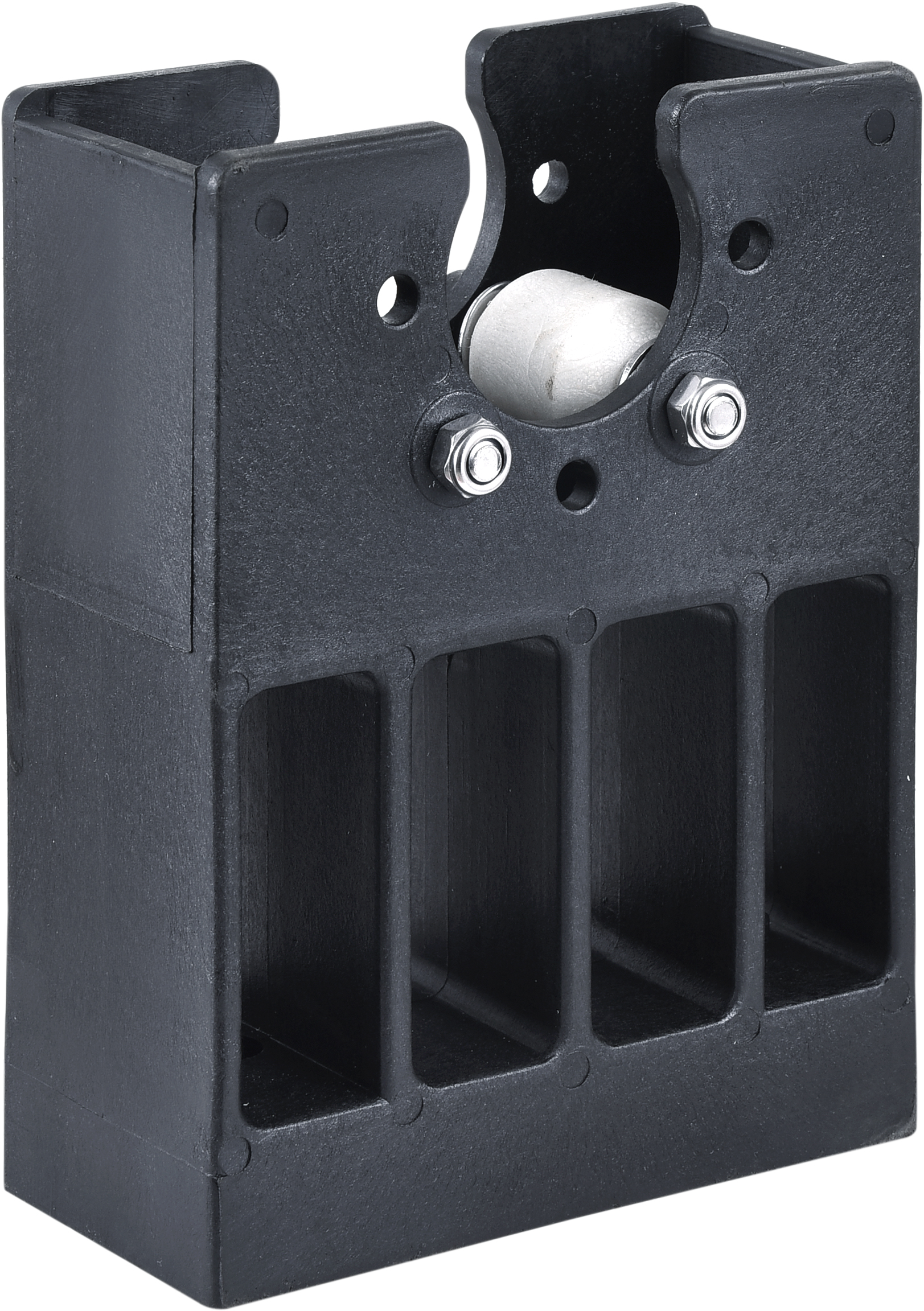

Supporting Bearing |  |

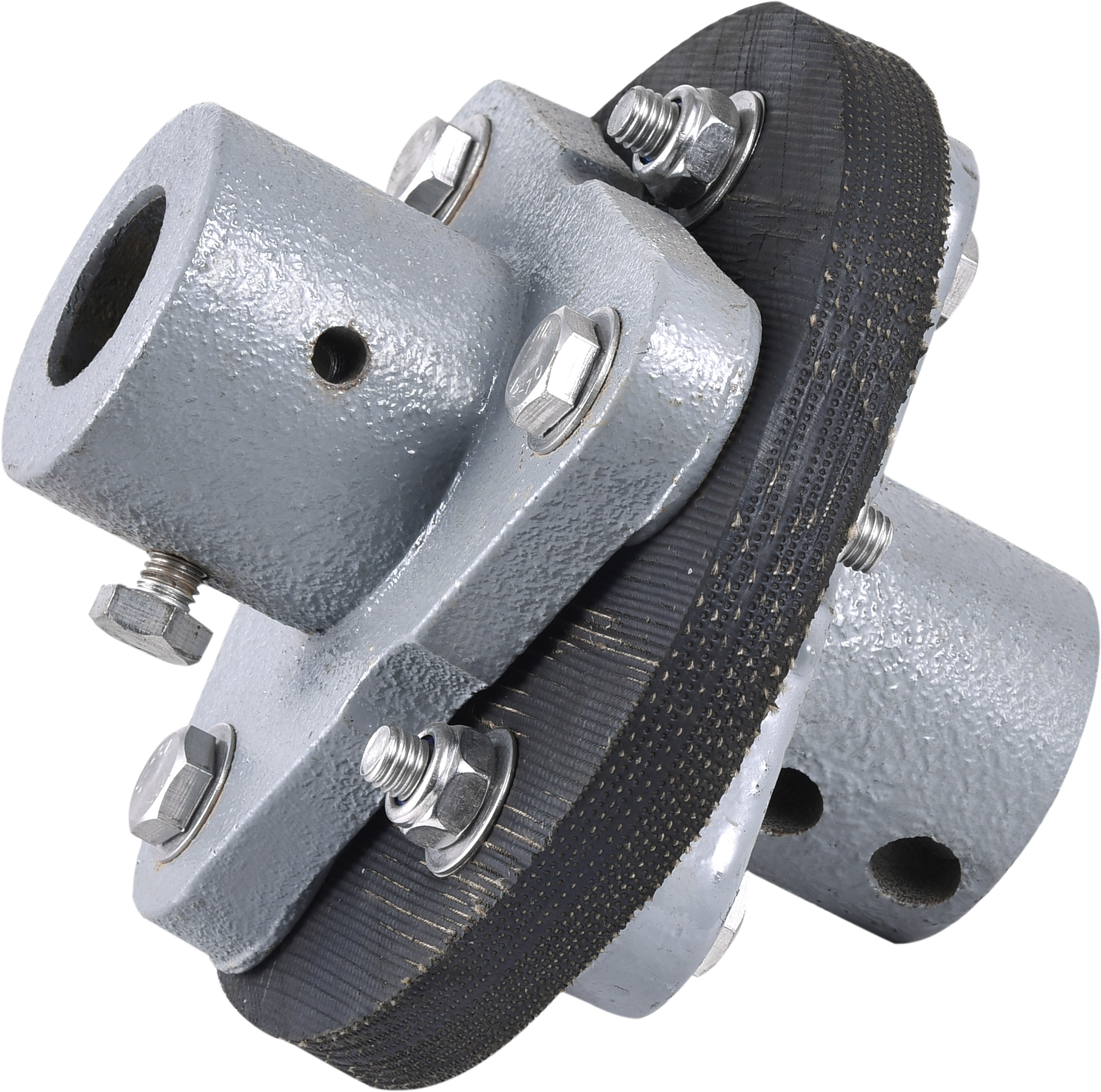

Movable joint |
| No aging or cracking problem for the specially made nylon body. | Stainless steel movable joint is suitable for whatever sea water or fresh water. Never rust | ||
 |

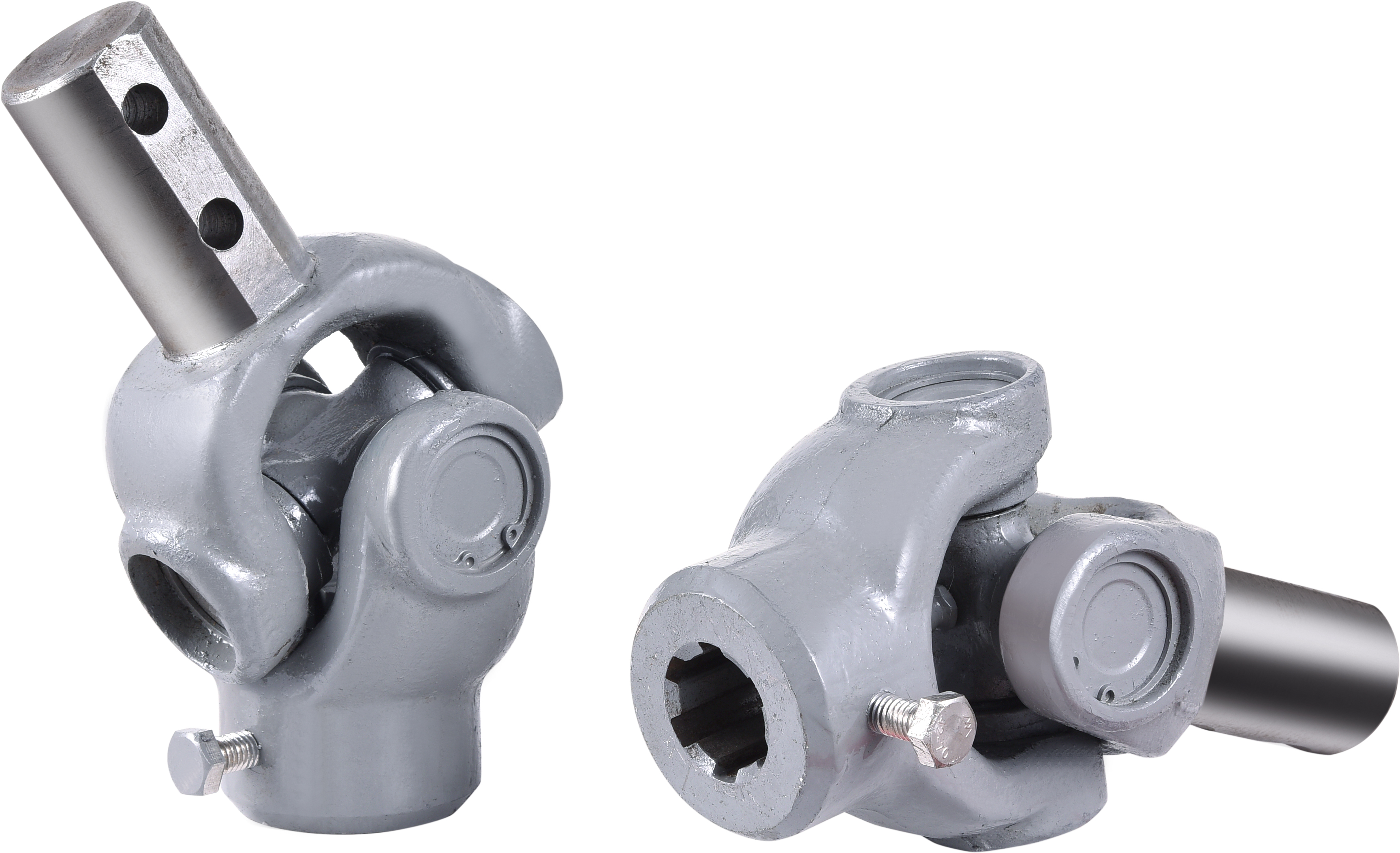

Cardan |  |
304# Shaft |
|
|
Made of 304# stainless steel, which could effectively prevent the corrosion from sea water | ||
|
CERTIFICATION
|
|---|
 |
|
SERVICE
|
|---|
 |
 |
|---|---|
| Pre-Sale Service | After-Sale Service |
| * Inquiry and Consulting Support | * Training on How to Install the Aerator. |
| * Sample Testing Support | * Training on How to Use the Aerator. |
| * Inspection on Our Factory in Person/ on Video | * Response within 24 Hours |
|
Leading the Future of Aquaculture YiYuan--YOUR POND TRUE PARTNER !!! |
|---|
